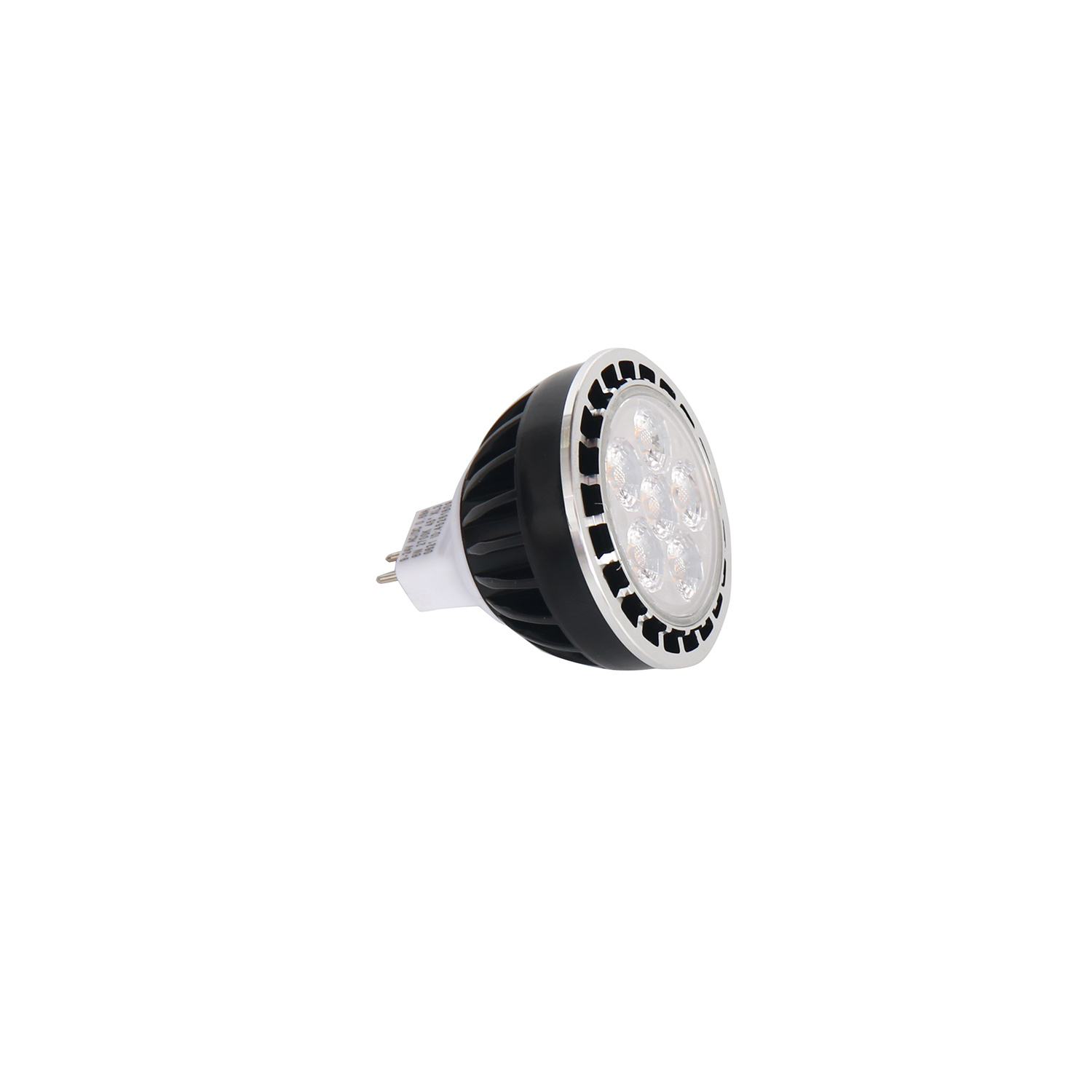

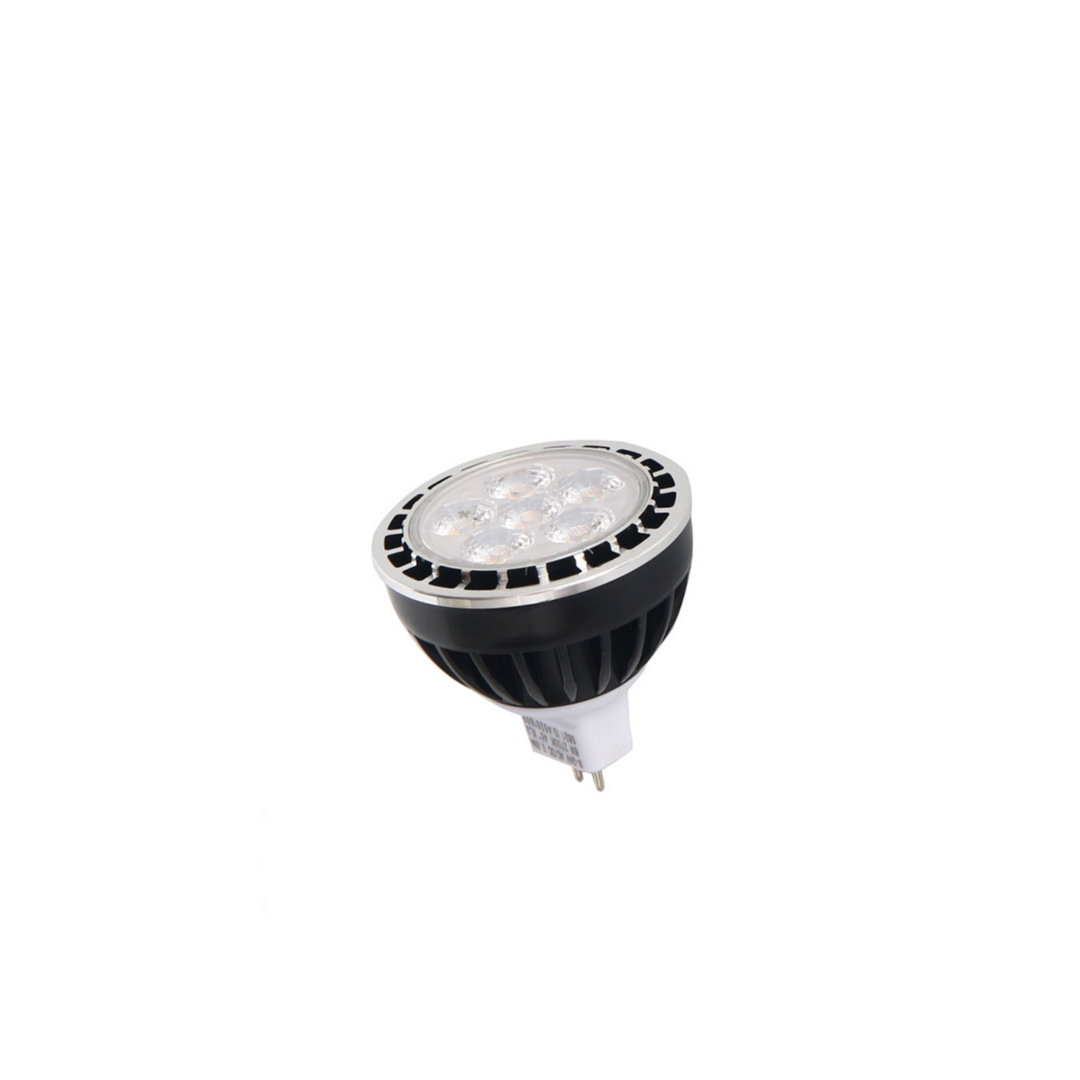

MR16 (SD28A)
Wonka has just introduced a whole new line of replacement LED lamps. There has never been a reliable MR16 replacement lamp until now. It is a completely sealed, wet-location approved design.
The electronics are weather coated to match the end-use application, assuring superior durability for all-weather performance. All of the bulbs have a cast aluminum heat sink for enhanced thermal management.
-
Potted and/or coated electronics protect against moisture.
-
Designed and listed for outdoor use in enclosed fixtures or wet locations.
-
Dimmable with most magnetic transformers
-
Integrated, high output LEDs tightly binned for high CRI, color uniformity an color quality.
-
Generates consistent light output for systems with an operating range from 12v to 24v AC/DC with no loss in light output.
-
High total lumens and lumens per watt (efficacy).
-
50,000 hour life in an enclosed fixture,defective rate<0.3%.
-
cETL compliant
| Item | Description | |||
|
MR16 (SD17A) |
Dimension: | 50×50.4mm | Power | 5W、6W、7W |
|
Housing material: |
Die casting Aluminium | LED Type: | CREE,SAMSUNG,Chinese | |
| Dimming: | Non-dimmable | LED Qty: | / | |
| Color temperature: | 2700, 3000, 4000, 5000k | Voltage : | 12V~24 AC/DC | |
| Beam angle: | 15°、30°、45°、60°、120° | Weight/Ctn: | 8 Kg | |
| Luminous flux: | 520lm、600lm、690lm | Operation temp: | -40°C~+45°C | |
| CRI: | >80 | Certification: | ETL | |
| Efficacy: | >100lm/w | MOQ: | 100PCS | |
|
|
